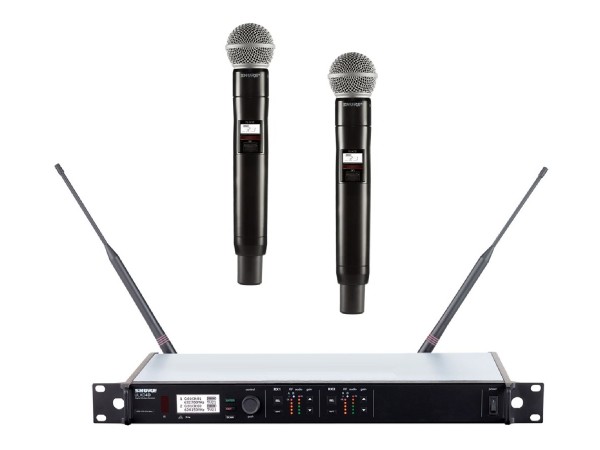

Shure ULXD4D-G50 Dual Channel Digital Wireless Microphone System

The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing.

With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. With the suite of features and benefits, ULX-D® Digital Wireless Systems offer, the ULXD4D is truly generations ahead of any other dual digital receiver in its class and brings a new level of performance to professional sound reinforcement.

PRODUCT HIGHLIGHTS:

• Two receivers in a rugged 1RU metal chassis with internal power supply Individual gain controls, LED meters, and XLR outputs for each channel
• Digital predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• RF cascade ports allow distribution of RF signal to another unit
• Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
• Audio summing routes both audio channels to each XLR receiver output
• Up to 60 dB independently adjustable gain for each channel
• Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
• Wireless Workbench® 6 (WWB6) software integration for advanced coordination, monitoring, and control
• Intuitive front panel LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• XLR connectors with switchable mic/line output level
• Remoteable ½ wave antennas

Manufacturer

Brand	Shure
Model	ULXD4D-G50

General

Type	UHF
Color	Black
Construction	Galvanized Steel

Receiver Connectivity

Output Connectors

1 x XLR connector (into 600 Ω load) 1x 6.35 mm (1/4") connector (into 3 kΩ load)

Receiver Performance Data

Frequency Response	25 Hz – 15 kHz, ±2 dB Note: Dependent on microphone type
UHF Band	Available options in stock: G3E (470-506 MHz) J2 (554-590 MHz) K2E (606-642 MHz) M2 (662-698 MHz) R4 (784-820 MHz) S3 (829-865 MHz) Q2 (748-784 MHz)
Operating Range (FT)	100 m (300 ft) typical Note: Actual range depends on RF signal absorption, reflection and interference.

Receiver Physical Information

User Controls	Scan and sync® instantly and automatically sets up the system
Power	14–18 V DC (negative ground), 550 mA
Dimensions (WHD)	43 x 214 x 163 mm (1.72 x 8.56 x 6.52 in.), H x W x D
Weight	1049 g (2 lbs, 5 oz.)

Body Pack Transmitter

RF Output (mW)	1-20 mW
Gain Adjustment	20 dB
Polar Pattern	WL185 (super cardioid)
Battery Type/Life	2 x "AA" size alkaline batteries / up to 11 hours
Dimensions (WHD)	2.6" x 3.4" x 0.9"
Weight	5.0 oz

Handheld Transmitter

RF Output (mW)	1-20 mW
Gain Adjustment	20 dB
Polar Pattern	SM58 (cardioid)
Battery Type/Life	2 x "AA" size alkaline batteries / up to 11 hours
Dimensions (WHD)	10.1" x 2.0"
Weight	12.0 oz
