Epson Pro L1505UH, 12,000 Lumen WUXGA/4K (1920X1200) Laser Projector

Rentals starting at

$1,200.00

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

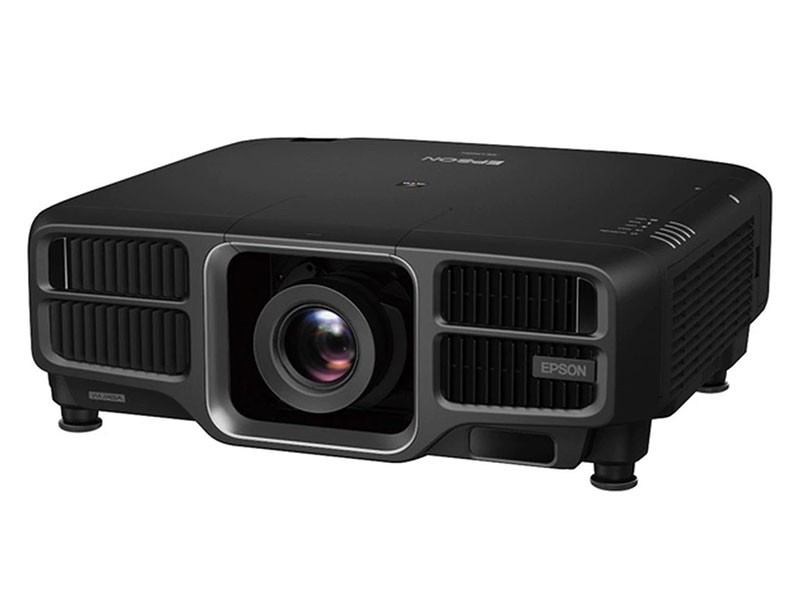

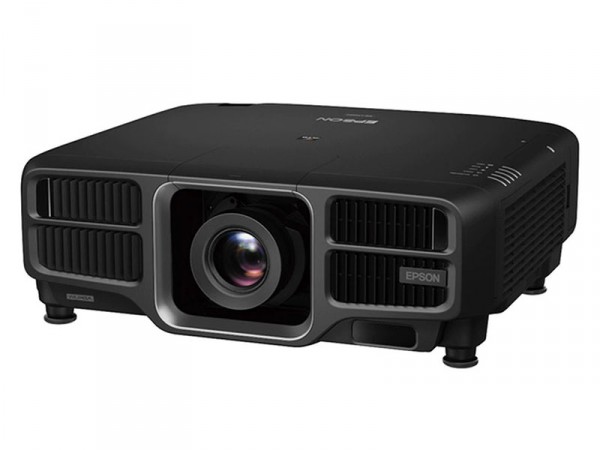

The Pro L1505UH combines a laser light source and 3LCD technology for powerful, uncompromising images. This premium large-venue projector features native WUXGA performance with Epson® 4K Enhancement Technology1. Delivering 12,000 lumens of color/white brightness2, the Pro L1505UH offers bright, vivid color, while its laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3. This sleek, black projector includes Edge Blending and 360-degree projection for a variety of installation applications. Its integration capabilities include 3G-SDI and HDBaseT™ connectivity, plus nine optional powered lenses (ships with ELPLM15 lens).

PRODUCT HIGHLIGHTS:

  • Dynamic projection capabilities - advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications.
  • Bright, vivid color - 12,000 lumens color/white brightness
  • Exceptional Full HD widescreen display - native WUXGA (1920 x 1200) with 4K Enhancement for presentations, videos, digital signage and more
  • Solid-state laser light source - designed with inorganic components for up to 20,000 hours of virtually maintenance-free operation
  • Powerful - remarkable brightness from a compact projector with a 120 V power source
  • Advanced connectivity - 3G-SDI, HDBaseT, HDMI®, DVI-D, VGA, 5-BNC and Stereo Mini
  • Nine optional interchangeable lenses (sold separately) - with powered lens shift and lens memory
  • Installation flexibility - 360-degree projection and Portrait Mode for added versatility
  • Remote management and control tools - included software allows for web-based monitoring and control of Epson networked projectors
  • Image correction camera - automatically adjusts color and brightness to match other projectors in multiple-screen applications Brightness lock feature - allows users to securely set maximum brightness level

Manufacturer

Brand Epson
Model Pro L1505UH

General

Color Black
Construction Plastic Housing
Type Large Venue Projector

Display

Aspect Ratio Supports 4:3, 16:9, 16:10
Contrast Ratio 2,500,000:1
Lumens 12000 lumens
Native Resolution 1920 x 1200 (WUXGA)
4K w/pixel shifting

Optics

Digital Keystone Horizontal/Vertical Keystone Correction
Geometric Keystone Correction
Filter Size Replacement Air Filter (ELPAF51) V13H134A51
Lamp Lamp Type: Laser Phosphor
Lamp Life: 20,000 hours / 30,000 hours (Eco)
Lens Type:
(For Standard Lens) Powered shift/focus/zoom
F-number:
(For Standard Lens Only) 1.8 – 2.35
Focal Length:
(For Standard Lens Only) 36.0 – 57.35 mm
Zoom Ratio:
(For Standard Lens Only) Optical zoom 1 – 1.61
Lens Shift (For Standard Lens) Powered shift/focus
Zoom / Focus Zoom Ratio:
(For Standard Lens Only) Optical zoom 1 – 1.61

Connectivity

Audio (4) 3.5mm audio (3 in, 1 out)
Control Remote Control:
Features Power, search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, help, menu, enter, esc and standby
Operating Angle
Right/left: Front: ± 60 degrees, Rear: ± 30 degrees
Upper/lower: Front: ± 20 degrees, Rear: +10 to +50 degrees
Operating Distance 49 ft

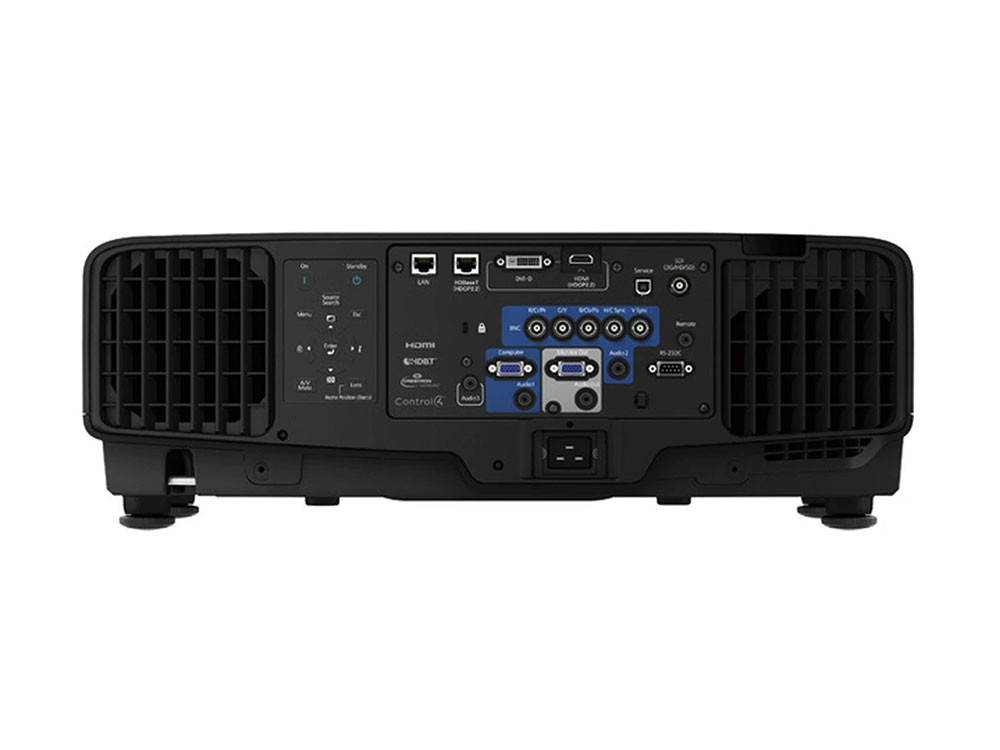

Input Connectors 3G-SDI x 1
DVI-D x 1
HDMI x 1
HDBaseT x 1
5-BNC
VGA x 1
Audio in: Mini Stereo x 3
Variable audio out: Mini Stereo x 1
USB connector Type B x 1: For service only
USB connector Type A x 1: For wireless only
Serial: RS-232c x 1
Output Connectors Monitor out: Mini D-sub 15 pin x 1
Supported Formats Input Signal:
NTSC/NTSC4.43/PAL/MPAL/NAL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p/UHD/4K

Physical Information

Dimensions (WHD) Including feet - with standard lens:
23.1" x 8.3" x 19.4"
Mounting Epson Ceiling Mount – Low Ceilings (ELPMB47) V12H802010
Epson Ceiling Mount – High Ceilings (ELPMB48) V12H803010
Power Power Supply Voltage:
100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:
Normal mode: 955 W
ECO mode: 597 W
Weight Weight 52.2 lb (with standard lens)

Special Features

Features ELPLL08 Long Zoom 5.27:1-7.41:1
ELPLM10 Middle Zoom #3 2.42:1-3.71:1
ELPLM11 Middle Zoom #4 3.54:1-5.41:1
ELPLM15 Middle Zoom #2 1.57:1-2.56:1
ELPLR04 Rear Fixed 0.70:1
ELPLU03 Short Zoom #1 0.48:1-0.57:1
ELPLU04 Short Zoom #2 0.64:1-0.77:1
ELPLW05 Wide Zoom #1 0.77:1-1.07:1
ELPLW06 Wide Zoom #2 1.19:1-1.62:1
ELPLW08 Zoom 0.86:1-1.21:1
ELPLX02 Short Fixed 0.35:1

Patch Cables

  • RGBHV Cable (5X BNC) Patch Cable (M-M)
  • HDMI Patch Cable (M-M)
  • DVI Patch Cable (M-M)
  • RG6 Video/SDI Patch Cable (BNC/F; M-M)
  • VGA HD Data/ Video Patch Cable (DB15;M-M)
  • VGA (DB15; M) to Component Video (3X RCA; M) Patch Cable
  • RGBHV Cable (5X BNC; F) to VGA (DB15; M) Patch Cable
  • VGA (DB15; M) to RGBHV (5X BNC; M) Patch Cable
  • DVI (M) to HDMI (M) Patch Cable

Security

  • Kensington® Notebook Lock (Keyed, 8mm, w/ Rubber Cable Tie)

Projector Lenses

  • ELPLR04 Fixed Short Throw Lens (0.7:1)
  • ELPLS04 Standard Zoom Lens (1.6 to 2.6:1)
  • ELPLM07 Middle Throw Zoom Lens #2 (3.6 to 5.4:1)
  • ELPLL07 Long Throw Zoom Lens (5.3 to 7.4:1)
  • ELPLX02S Ultra Short-Throw Lens (0.35 zero offset)
  • ELPLM08 Middle Throw Zoom Lens #1 (1.46 - 2.34:1)
  • ELPLU03 Short Throw #1 Zoom Lens (0.48 - 0.57:1)

Rigging

  • Chief VCM011E Universal HD Projector Mount
  • Chief CMA365 Truss Adapter
  • Chief CMS003 1.5" NPT x 3" Pipe
  • Chief CMS012 1.5" NPT x 12" Pipe
  • Chief CMS0305 1.5" NPT x 3' to 5' Adjustable Pipe

Storage & Shelving

  • ATA Road Case - Custom Carrier

Adapters

  • DisplayPort to HDMI Adapter
  • Mini DisplayPort to VGA Adapter
  • Mini DisplayPort to DVI Adapter
  • Mini DisplayPort to HDMI Adapter
  • Apple iPad Dock Connector to VGA (F) Adapter
  • DisplayPort to VGA Adapter
  • Apple Lightning™ to VGA Adapter
  • Apple Lightning™ to HDMI Adapter
  • USB-C to HDMI Adapter
  • Micro HDMI to HDMI Adapter
  • Mini HDMI to HDMI Adapter
  • DisplayPort to DVI Adapter
  • USB-C to VGA Adapter
