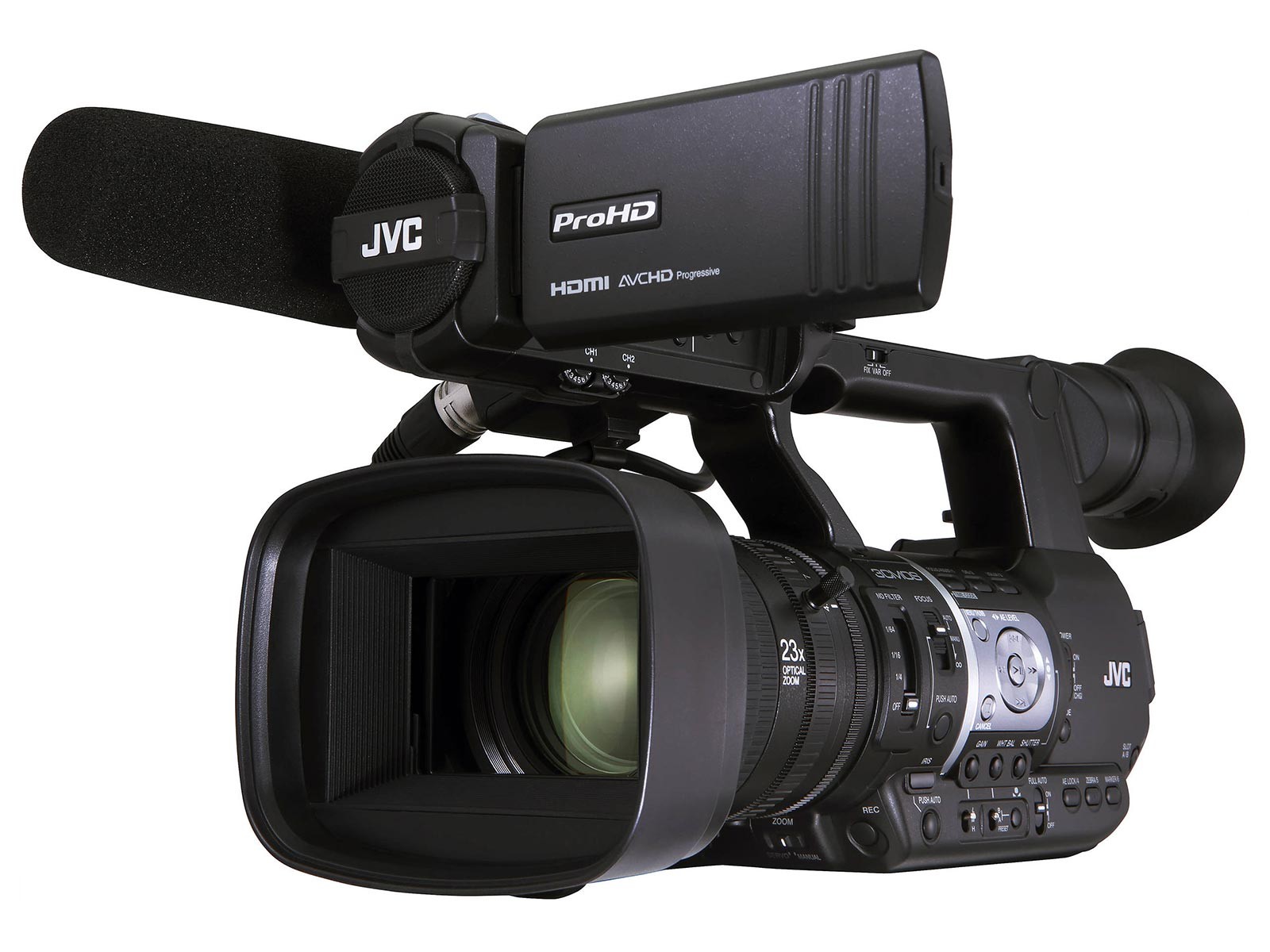

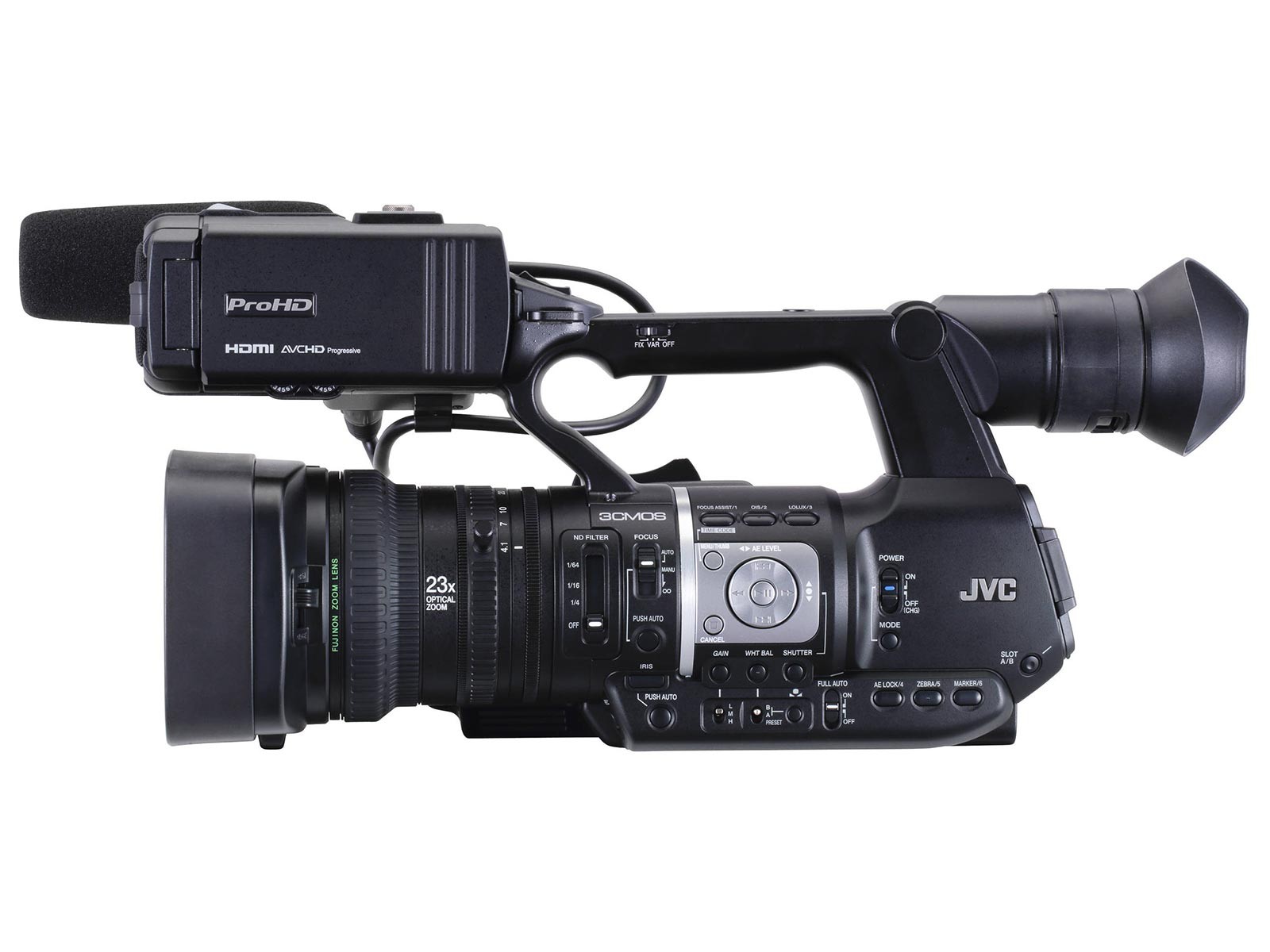

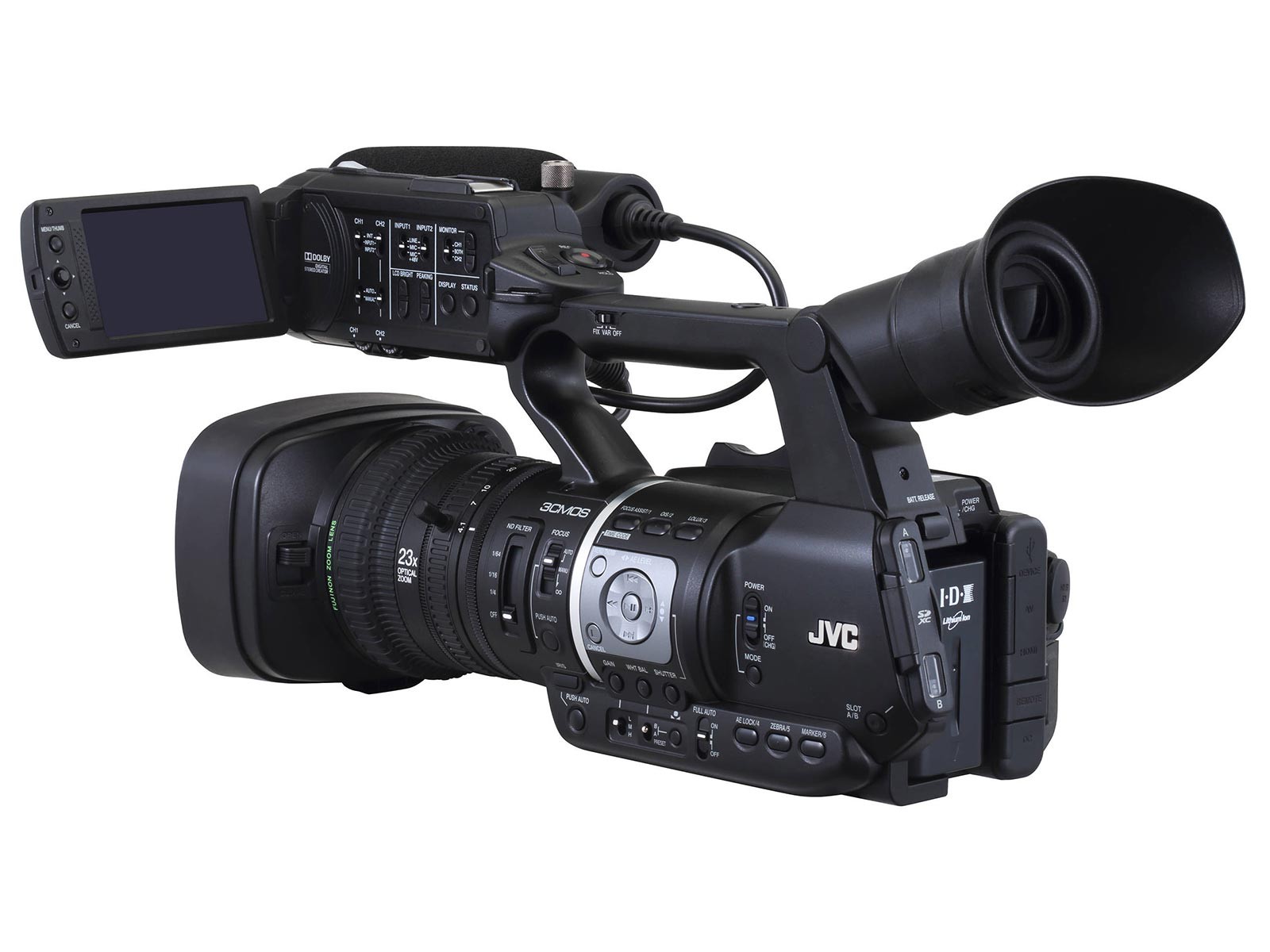

JVC GY-HM620 ProHD Mobile News Camera w/ 23X Zoom
Rentals starting at
$350.00
Rent-A-Bit low price guarantee!
Call us or click below to request a quote.
The JVC GY-HM620 ProHD Mobile News Camera features a lightweight-user-friendly design providing capacity for fast, efficient mobile newsgathering. The GY-HM620 offers Dual media card slots that allow you to record virtually endlessley by swapping out media cards as they fill up.
The camera's imaging system consists of three 1/3" 12-bit CMOS sensors with 1920 x 1080 resolution. The camera records NTSC broadcast compatible frame rates up to 59.94p in AVCHD and integrates a 23x Fujinon autofocus zoom lens with manual focus and zoom capability with a built-in 3-position ND filter. Connections include HD-SDI and HDMI. Comprehensive recording options consist of MPEG-2, AVCHD 2.0, and SD and Proxy H.264. Two SDXC/SDHC slots are available for simultaneous dual codec recording or relay recording. A viewfinder, LCD display and built-in microphone provide additional flexibility in on-the-go shooting.
PRODUCT HIGHLIGHTS:
- Three 1/3" 12-Bit CMOS Sensors
- Full HD Up to 59.94p/ Records SD Video
- Integrated Fujinon 23x Optical Zoom Lens
- Supports .MOV, .MP4, and AVCHD 2.0
- HDMI, HD-SDI Output, 2x XLR Audio Inputs
Manufacturer
| Brand | JVC |
| Model | GY-HM620 |
General
| Color | Black/Black |
| Format | Handheld ProHD camera |
| Type | Handheld ProHD camera |
Connectivity
| Audio | 2-channel balanced audio XLR inputs (mic/line switchable) w/phantom power supply |
| Control | Wired Remote Control Connection |
| Input Connectors | * XLR x2 (MIC,+48V/LINE) * TC Sync in/out |
| Output Connectors | * HD/SD SDI output BNC x1 * HDMI output x1 * f3.5mm mini jack x1 |
Supported Formats
| Input Formats | HD MPEG2 (35/25/19Mbps) AVCHD 1920x1080 60i 1080/60p recording capability SD H.264 |
| Output Formats | .MOV (Final Cut Pro) .MP4 (XDCAM EX™) AVCHD |
Optics
| Lens | 23x Fujinon Auto focus zoom lens with manual functions F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm) |
| Max. Shutter Speed | 1/4 to 1/10000 |
| Min. Illumination (lux) | Standard sensitivity of the GY-HM620 is measured at F12 @ 2,000 lux (60Hz) and F13 @ 2,000 lux (50Hz). |
| Min. Shutter Speed | 1/4 to 1/10000 |
| Native Resolution | 1920 X 1080 |
| Optical Sensor | 1/3" 2.2M pixels progressive scan 3CMOS |
| White Balance | Selectable between preset and 2 user settings |
| Zoom / Focus | Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm) |
Physical Information
| Accessory Shoe | Yes |
| Card Slot | 2x SDHC/SDXC memory card Class 6/10 |
| Dimensions (WHD) | 178(W) x 198(H) x 416(D)mm (7" x 7-13/16" x 16-3/8") |
| Illumination System | Available |
| LCD Monitor | 3.5” 920K pixels, 16:9 |
| Mounting | Fixed lens |
| Power | DC 12V (AC adaptor), DC 7.2V (Battery) |
| User Controls | Assignable |
| Viewfinder | 0.45” 1.22M pixels, 16:9 |
| Weight | Appro.2.4kg (5.3lbs):GY-HM600, 2.45kg(5.4lbs):GY-HM650 (Including battery) |
Special Features
| Features | The 620 has upgraded CMOS devices for greater sensitivity and a brighter LCD display for outdoor daylight viewing. Versatile and extremely easy to use for HD field production. |
Recommended Uses
| Uses | news, sports, and independent production |
Video Components
- Manfrotto 524CFI Intelligent Zoom Control for Fujinon Lens
- Manfrotto 127VS Variable Spread Dolly
- Anton Bauer DIONIC-HC LI-ION 85WH/14.4V Battery
- Anton Bauer Tandem 70MT 70W Charger / Power Supply
- JVC Tripod Plate / Adapter Kit
- Anton Bauer PSM-160 60W / 14.4V Power Supply
- Dracast Camlux Series Max Bi-Color On-Camera Light with Battery & Charger
- Clamp Mount Multi-Function Double Ball Adapter with Bottom Clamp
