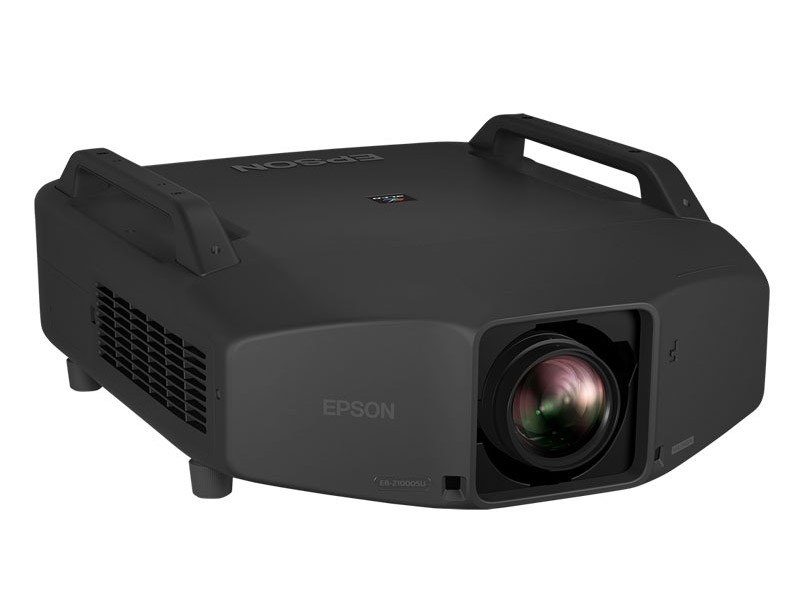

Epson PowerLite Pro Z10005U, 10,000 Lumen WUXGA (1920X1200) 3LCD Projector

Rentals starting at

$900.00

800-673-7350

Call us or click below to request a quote.

The PowerLite Pro Z10005UNL projector combines high-lumen projection with Full HD, WUXGA performance, all in a sleek black casing — for installation in large venues. Offering Up to 3x Brighter Colors* than competitive models, Epson projectors ensure vivid images. With 10,000 lumens of color brightness and 10,000 lumens of white brightness1, the Z10005UNL makes content shine, even in high ambient light. Featuring 3LCD, 3-chip technology and the latest connectivity — including HDBaseTTM and 3G-SDI — this powerful performer delivers uncompromised image quality and professional-grade reliability. And, installation has never been more flexible, with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode and 360-degree projection features.

PRODUCT HIGHLIGHTS:

Projection System: High-aperture Epson 3-chip 3LCD
Native Resolution: WUXGA (1920 x 1200)
Color Brightness: 10,000 lumens1
White Brightness: 10,000 lumens1

ACCESSORIES:

V13H134A46 (Replacement Air Filter) / ELPAF46
V13H010L84 (Replacement Projector Lamp - Portrait Mode - Dual) / ELPLP84 / ELPLP83 Single

Manufacturer

Brand	Epson
Model	PowerLite Pro Z10005U

General

Color	Black
Construction	Plastic Housing
Type	Large Venue Projector

Display

Aspect Ratio	Native 16:10 (supports 4:3, 16:9, 5:4)
Contrast Ratio	Normal, Dynamic Mode: Up to 15,000:1
Lumens	10,000 lumens
Native Resolution	WUXGA (1920 x 1200)

Optics

Digital Keystone	Vertical: -30 degrees to +30 degrees Horizontal: -30 degrees to +30 degrees Horizontal - Vertical
Digital Zoom	Zoom Ratio: Optical zoom 1.0 – 1.61 (standard lens)
Fan	Fan Noise: ECO mode: 35 dB Normal mode: 40 dB
Filter Size	Replacement Air Filter (ELPAF46)
Lamp	Lamp Type - Normal ECO mode: Up to 4000 hours2 Normal mode: Up to 2000 hours2 Portrait: Normal mode: Up to 1000 hours2 Lamp Life: Normal: 380 W x 2 UHE Portrait: 304 W x 2 UHE
Lens	Wide Zoom Lens (ELPLW04) Throw ratio: XGA: 1.23 – 1.68 WXGA: 1.29 – 1.77 WUXGA: 1.19 – 1.62 Middle Throw Zoom Lens #1 (ELPLM06) Throw ratio: XGA: 2.51 – 3.85 WXGA: 2.64 – 4.03 WUXGA: 2.68 – 4.10 Short Throw Lens (ELPLU02) Throw ratio: XGA: 0.66 – 0.80 WXGA: 0.64 – 0.77 WUXGA: 0.64 – 0.77 Standard Lens (ELPLS04) Throw ratio: XGA: 1.63 – 2.65 WXGA: 1.71 – 2.78 WUXGA: 1.74 – 2.82 Long Throw Zoom Lens (ELPLL07) Throw ratio: XGA: 5.45 – 7.67 WXGA: 5.76 – 8.09 WUXGA: 5.83 – 8.18 Rear Projection Fixed Lens (ELPLR04) Throw ratio: XGA: 0.72 WXGA: 0.76 WUXGA: 0.77 Middle Throw Zoom Lens #2 (ELPLM07) Throw ratio: XGA: 3.66 – 5.60 WXGA: 3.85 – 5.88 WUXGA: 3.92 – 5.97
Lens Shift	Powered Vertical: ±60% Horizontal: ±18%
Zoom / Focus	Powered

Connectivity

Audio	Audio Output: None
Control	Remote Control: Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screen Operating Distance: 98 ft Operating Angle: Front Right / Left: ±60 degrees Upper / Lower: -45 to +15 degrees Rear Right / Left: ±60 degrees Upper / Lower: -40 to +15 degrees

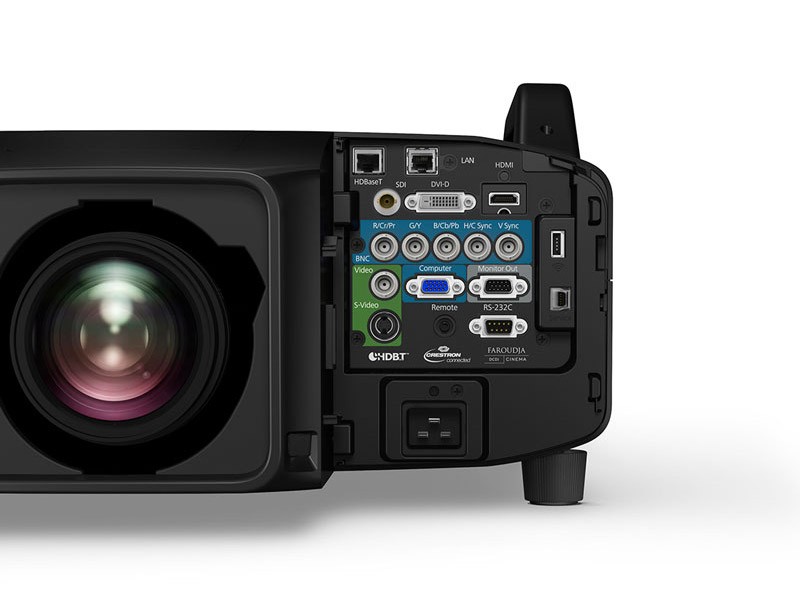

Input Connectors	HDMI x 1 DVI-D x 1 HDBase-T x 1 3G-SDI x 1 Computer: D-sub 15 pin x 2 Video: BNC x 5 Composite Video: BNC x 1 Wired Network: RJ-45 x 1 Wireless Network: Optional Serial: Rs-232c x 1 Hardwired Remote Jack x 1 USB Type-A: For wireless only USB Type-B: For service only
Output Connectors	Monitor-Out: D-sub 15 pin x 1
Supported Formats	Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p SD-SDI: 480i / 576i HD-SDI: 720p / 1080i / 1080p@30 3G-SDI: 1080p@60 SDI: 480i / 576i

Physical Information

Dimensions (WHD)	Excluding feet - with standard lens: 21.02" x 10.04" x 29/.17" Including feet - with standard lens: 21.02" x 7.76" x 29.17"
Mounting	Projection Method: Front / rear / ceiling mount
Power	Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC Power Consumption: ECO mode: 821 W Normal mode: 1120 W Communication on: 2.7 W standby Communication off: 0.26 W standby
Weight	Weight - with standard lens: 58 lb

Patch Cables

RGBHV Cable (5X BNC) Patch Cable (M-M)
HDMI Patch Cable (M-M)
DVI Patch Cable (M-M)
RG6 Video/SDI Patch Cable (BNC/F; M-M)
VGA HD Data/ Video Patch Cable (DB15;M-M)
VGA (DB15; M) to Component Video (3X RCA; M) Patch Cable
RGBHV Cable (5X BNC; F) to VGA (DB15; M) Patch Cable
VGA (DB15; M) to RGBHV (5X BNC; M) Patch Cable
DVI (M) to HDMI (M) Patch Cable

Security

Kensington® Notebook Lock (Keyed, 8mm, w/ Rubber Cable Tie)

Projector Lenses

ELPLR04 Fixed Short Throw Lens (0.7:1)
ELPLS04 Standard Zoom Lens (1.6 to 2.6:1)
ELPLM07 Middle Throw Zoom Lens #2 (3.6 to 5.4:1)
ELPLL07 Long Throw Zoom Lens (5.3 to 7.4:1)
ELPLX02S Ultra Short-Throw Lens (0.35 zero offset)
ELPLM08 Middle Throw Zoom Lens #1 (1.46 - 2.34:1)

Rigging

Chief VCM011E Universal HD Projector Mount
Chief CMA365 Truss Adapter
Chief CMS003 1.5" NPT x 3" Pipe
Chief CMS012 1.5" NPT x 12" Pipe
Chief CMS0305 1.5" NPT x 3' to 5' Adjustable Pipe

Storage & Shelving

ATA Road Case - Custom Carrier

Adapters

DisplayPort to HDMI Adapter
Mini DisplayPort to VGA Adapter
Mini DisplayPort to DVI Adapter
Mini DisplayPort to HDMI Adapter
Apple iPad Dock Connector to VGA (F) Adapter
DisplayPort to VGA Adapter
Apple Lightning™ to VGA Adapter
Apple Lightning™ to HDMI Adapter
USB-C to HDMI Adapter
Micro HDMI to HDMI Adapter
Mini HDMI to HDMI Adapter
DisplayPort to DVI Adapter
USB-C to VGA Adapter

Consumables
