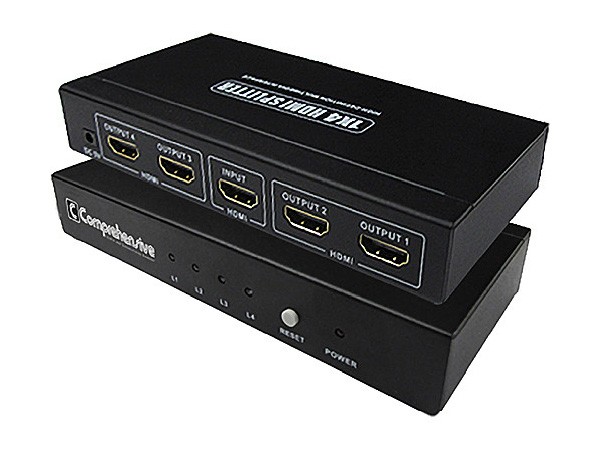

HDMI 1 x 4 Distribution Amplifier

The Comprehensive HDMI Distribution Amplifier (1 x 4) is a compact high-performance amplifier designed for distribution of HDMI signals with HDCP copy protection. It supports HDTV from 480p to 1080p, and 480i SDTV. The unit has 4 HDMI outputs and a single input to provide transparent distribution of signals to 4 destinations. Each unit's output achieves long distance transmission of the HDMI signal up to 49.2' (15 m).

The splitter can be cascaded with 2 or more splitters to deliver HDMI and HDCP signals over greater distances from the source using high-grade HDMI cables. The amplifier is a plug-and-play device with no software needed during installation, and is desktop or remote mountable. It is quite easy to use with installation completed in seconds and no extra settings required.

HDMI certified by Silicon Image and compliant with RoHS and HDCP, the amplifier has connectors for the input and outputs as well as an AC power adaptor that provides 5 VDC power supply for operation. It supports the DDWG Standard for HDMI Monitors

Provides transparent distribution of signals to 4 destinations 4 HDMI outputs from a single source Supports HDTV from 480p to 1080p Supports 480i SDTV HDMI signal transmission up to 49.2' (15 m) Can be cascaded with other splitters for delivering HDMI and HDCP signals over long distances Plug and play - No software needed Desktop or remote mountable HDMI certified by Silicon Image RoHS compliant HDCP compliant True v1.3b chipset Includes an AC power adaptor that provides 5 VDC for operation Bandwidth of 165 MHz Supports the DDWG Standard for HDMI Monitors
