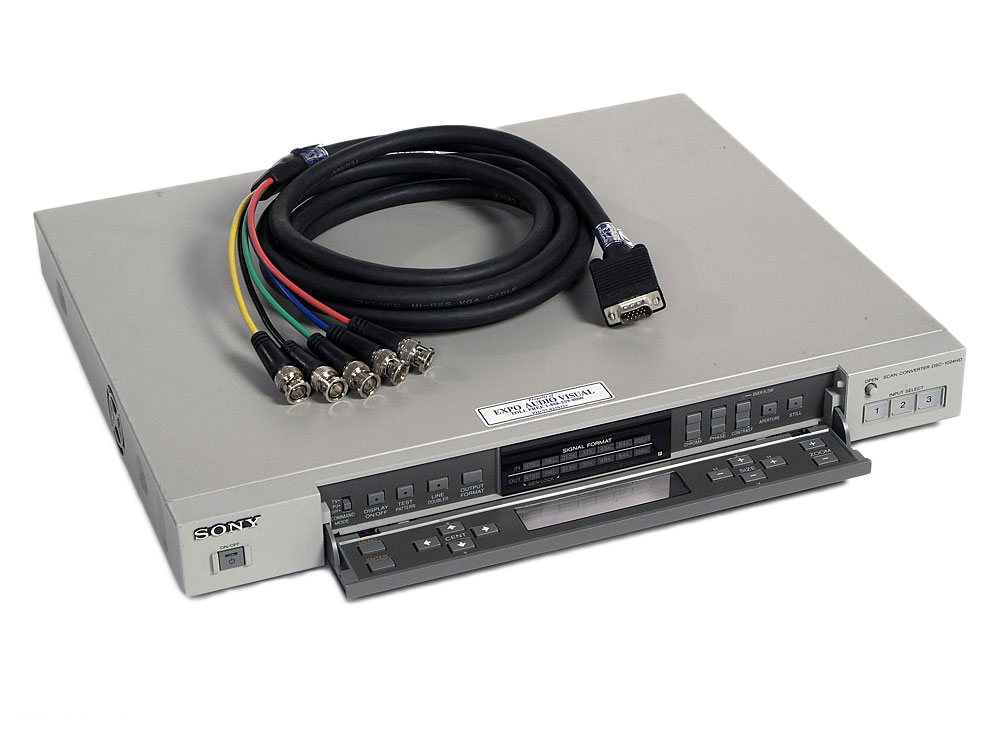

Sony DSC-1024G Scan Converter

The DSC-1024G scan converts, transcodes, standards converts, aspect ratio converts, line doubles and signal processes. The DSC-1024G has an added GENLOCK function which uses a black-burst signal applied as a genlock reference, so that the signal output can be synchronized to the reference. Up/Down Scan conversions: locks to and displays INPUT RANGE: H:15.6-70kHz, V:50-120 Hz and OUTPUTS: 15.6/31.5/37/48/64 kHz. Transcodes: To and from composite, Y/C, RGB and Y/R-Y/B-Y. Standards conversions: NTSC-PAL. Aspect ratio conversions: a wide range of aspect ratio conversions including 4:3, 16:9, 2:1, 1:85, 1:66 and more with On- Screen Display of aspect ratio. Line doubles: the horizontal scanning frequencies of 15.75/15.6 to 31.5 kHz for NTSC and PAL sources. Signal Processor: for up to a 4 x 4 video wall (requires one DSC-1024G per Display device). Additional function include: 4 internal test patterns, on- screen display in 5 languages, 3 line digital comb filter, freeze frame/still store, H & V shift and size, zoom and pan, aperture control, remote control capability with monitor and projector IDs via SIRCS, Display memories for storage of up to five sets of input/output selections, zooming size, H/V size and H/V position for later recall via on- screen menus. Compatibility with KV, CPD, GDM, PVM, PGM, VPH, VPL, AND RVP.

Manufacturer

Brand	Sony
Model	DSC 1024G

General

Type	Scan Converter
Color	Grey

Connectivity

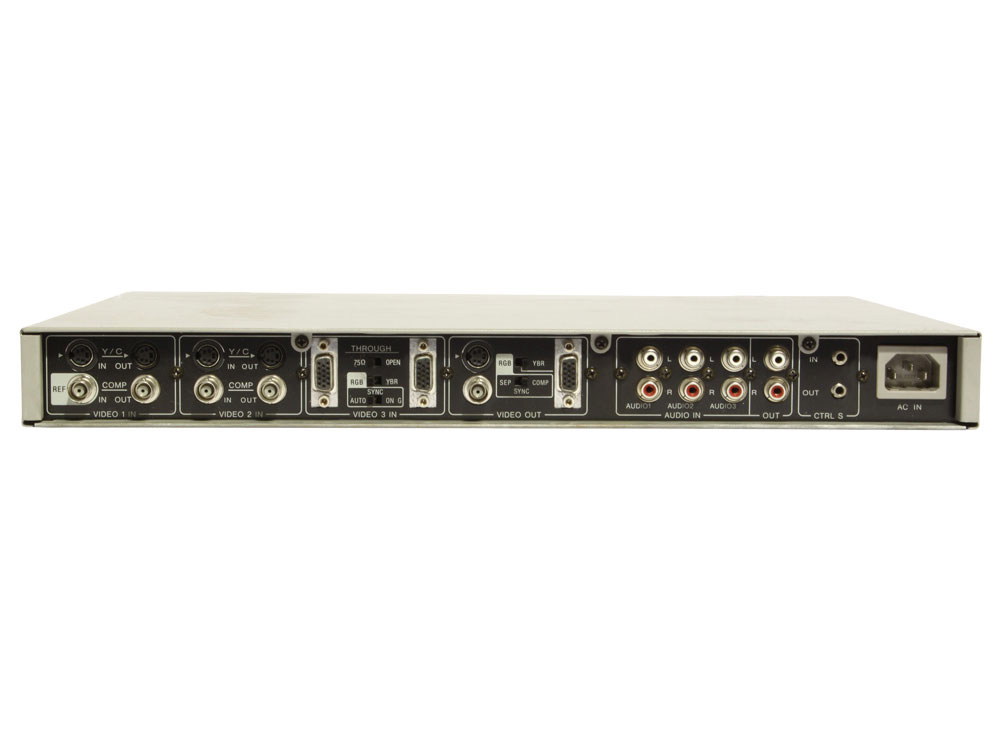

Input Connectors	Video1: 1 x Composite: Loop-though BNC 1 x S Video: Loop-though 4-pin mini DIN Video2: 1 x Composite: Loop-though BNC 1 x S Video: Loop-though 4-pin mini DIN Video3: 1 x Component(R/G/B, Y/R-Y/B-Y): 1 x Loop-though D-sub 15-pin Audio1/2/3: 1 x L/R RCA jack
Output Connectors	Video Out: 1 x Composite: BNC 1 x S video: 4-pin mini DIN 1 x Component(R/G/B, Y/R-Y/B-Y): D-sub 15-pin 1 x Audio: L/R RCA jack

Supported Formats

Input Formats	NTSC, PAL, RGB up to SXGA
Output Formats	NTSC (composite, S-video & Component), PAL, RGB up to SXGA

Performance Data

Signal Level (video output)	Composite: 1Vp-p (typical) S video: Y:1Vp-p (typical), sync negative C:0.286Vp-p(NTSC)/0.3Vp-p(PAL)(typical) Component: R/G/B Input: 0.714Vp-p(typical)(sync on G/external sync, switchable) R/G/B Output: 0.714Vp-p(typical)(with external sync) Y/R-Y/B-Y Input: 0.7Vp-p(typical)(NTSC/PAL,sync on Y) Y/R-Y/B-Y Output: 0.7Vp-p(typical)(with syncon Y)
Impedence (video output)	75Ω

Physical Information

User Controls	Manual
Power	Power requirements: 100 to 120V, 0.4A (max.), 50/60Hz 200 to 240V, 0.25A (max.), 50/60Hz Power consumption: 30W (max. power on), 3W (typical power off)
Dimensions (WHD)	16 3/4 × 1 3/4 × 14 inches
Weight	9 lbs

Recommended Uses

Uses	Scan Converter
